Pointing Detection

Date

Fall 2021

Description

In this project I worked with a partner on applying computer vision techniques to identify the pose of a pointing finger for robotics applications. The motivation being that it would be beneficial if robots could understand non-verbal communication such as pointing, and the methods developed in the project could be extended to other forms of non-verbal communication like sign-language.

I was the software implementation lead. I used Python, OpenCV, and MediaPipe to implement code that was able to:

Read in a video or set of images
Determine if there is a human in the video
Determine if a human’s hand was in the video
Estimate the pose of a “pointing finger” using hand landmarks returned from the MediaPipe API and non-linear least-squares methods
Estimate the pose of a “pointing finger” using color segmentation to isolate a set of rectangles and non-linear least-squares methods

Skills Used

Python programming
Use of open-source libraries such as OpenCV and NumPy
Research
Experiment design
Experiment analysis
Writing
Linux/Unix command line usage
Git
LaTeX

Images

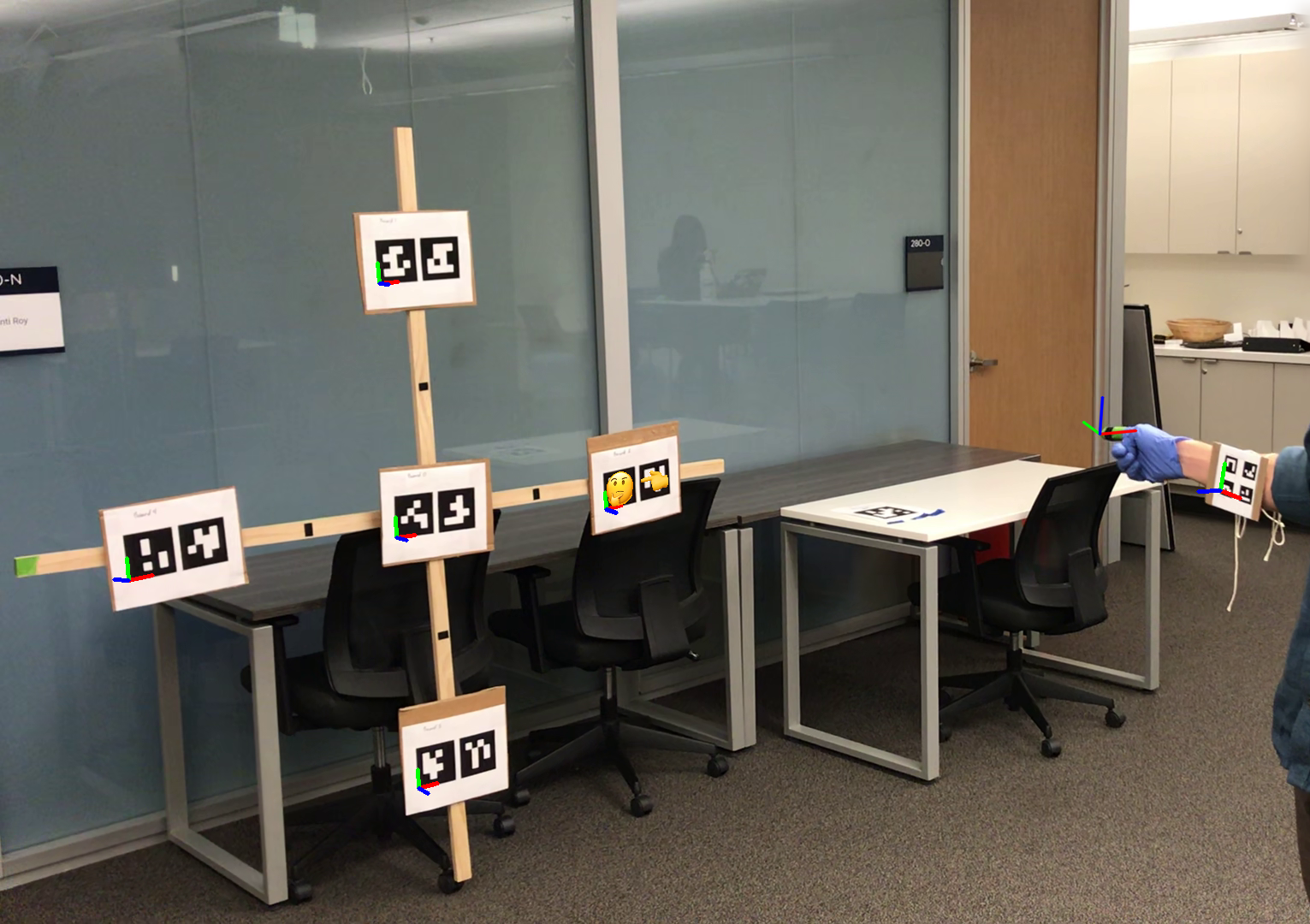

Output results of our algorithm for the color segmentation task. Poses of objects are indicated with coordinate axes, and targeted ArUco tags are labeled with the finger pointing emoji for the finger target estimate and the thinking face emoji for the arm board target estimate.

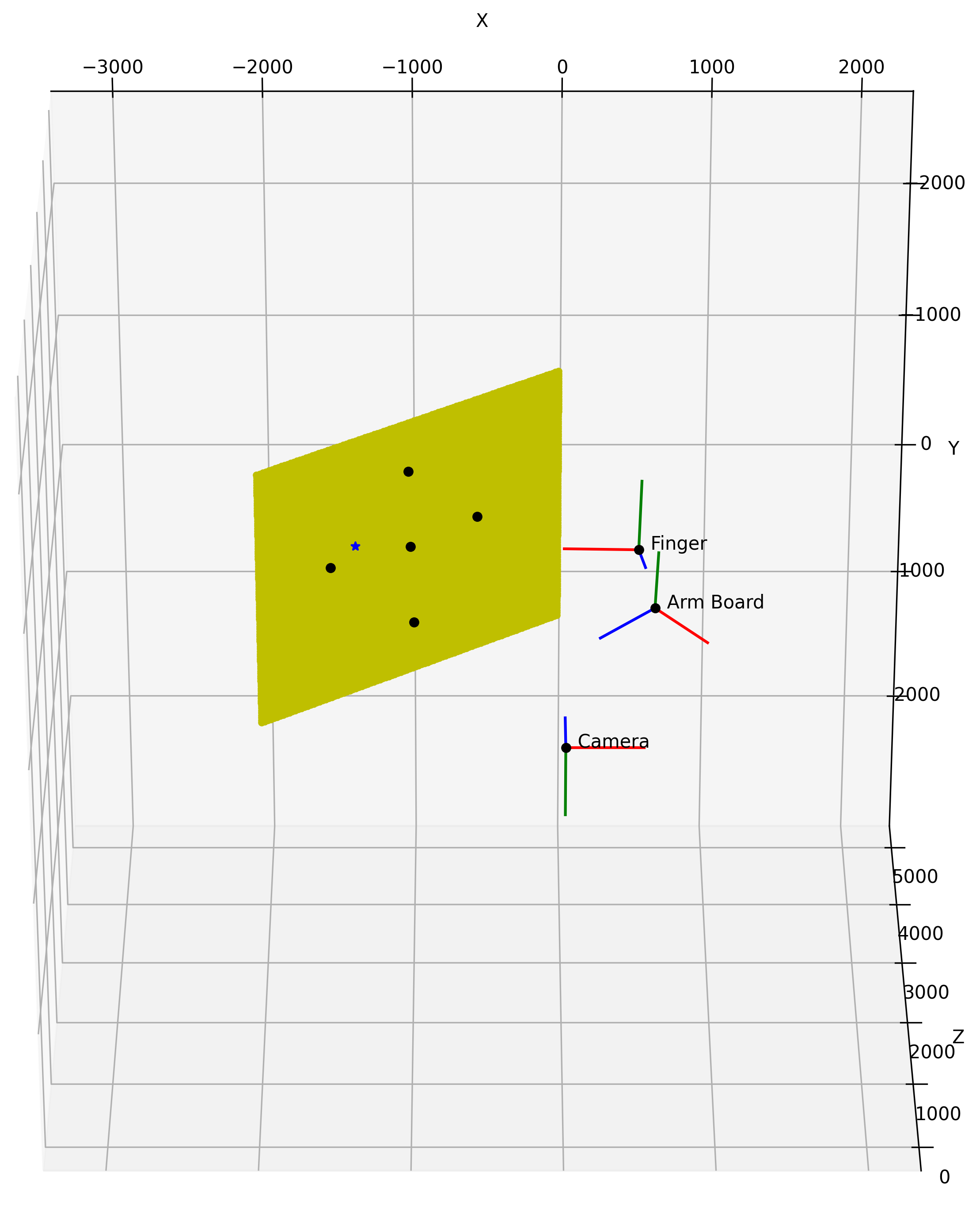

A 3D plot of the scene, containing the poses of all the objects in it. The yellow plane was formed by the origins of three of the five ArUco tags (shown in black), while the points and poses for the finger and arm board were found using our methods described in the Approach. The blue star on the plane indicates the intersection of the pointing line with the ArUco tag plane, and in this figure we see that it is closest to the left-most tag.

A 3D plot of the scene, containing the poses of all the objects in it. The yellow plane was formed by the origins of three of the five ArUco tags (shown in black), while the points and poses for the finger and arm board were found using our methods described in the Approach. The blue star on the plane indicates the intersection of the pointing line with the ArUco tag plane, and in this figure we see that it is closest to the left-most tag.
